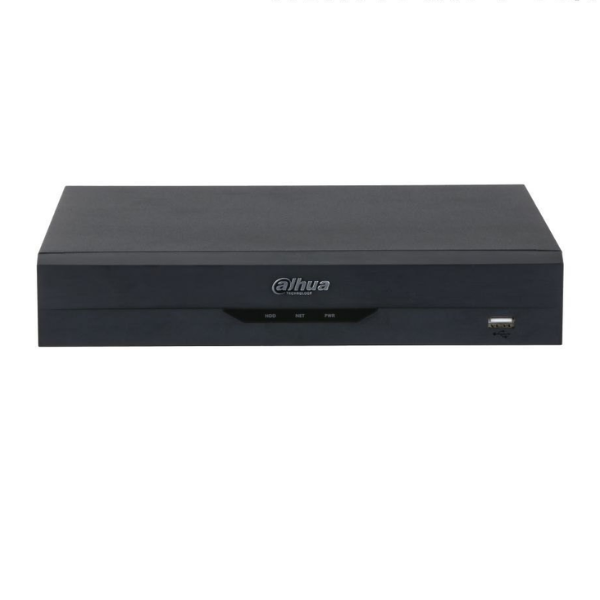

Dahua NVR1108HS-S3/H Smart H.265+ 4 Channel Network Video Recorder (NVR)

Key Features

• Model: NVR1108HS-S3/H
• 8 channel max, up to 8MP resolution
• 80Mbps record rate, H.265/H.264
• VGA/HDMI output 1080P
• 1 SATA port, up to 8 TB HDD

Specification

System Main Processor Embedded Processor Operating System Embedded LINUX Operation Interface Web/operating in local GUI Video Access Channel 8 channels Network Bandwidth 80 Mbps for access, 80 Mbps for storage, and 60 Mbps for forwarding. Resolution 8MP/5MP/4MP/3MP/1080P/720P/D1/CIF Decoding Capability 1–ch@8MP (30FPS) or 1–ch@5MP (30FPS) or 2–ch@4MP (30FPS) or 2–ch@3MP (30FPS) or 4– ch@1080P(30FPS)8–ch@720P(30FPS) Video Output 1 VGA/1 HDMI simultaneous video output, maximum resolution 1080P Multi-screen Display 1 / 4 / 8 /9 Browser Onvif, RTSP Compression Video Smart H.265+/H.265/Smart H.264+/H.264 Audio PCM/G711A/G711U/G726/AAC Network Network Protocol HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P Mobile Phone Access IDMSS (iOS), GDMSS (Android) Access Standard ONVIF (profile T/profile S/profile G), CGI, SDK Browser Chrome, IE9 or above, Firefox Record Playback Multi-channel Playback Up to 8 channels playback Record Mode Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording Storage Local HDD and network Backup USB device Playback Function 1. Play, pause, stop, fast forward, fast backward, rewind, play by frame 2. Full screen, backup (cut/file), partially enlarge, audio on/off Alarm General Alarm Motion detection, privacy masking, video loss, PIR alarm, IPC alarm Anomaly Alarm Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly Alarm Linkage Video recording, snapshot, log, preset, tour External Port HDD 1 SATA 2.0 port, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature USB 1 front USB 2.0 port, 1 rear USB 2.0 port HDMI 1 VGA 1 RCA Input 1 RCA Output 1 Alarm None Network 1 RJ–45 port (10/100 Mbps) General Parameter Power Supply DC12V, 1.5A Power Consumption The total output of NVR is ≤ 10W (without HDD) Net Weight 0.81 kg (1.79 lb) Gross weight 1.38 kg (3.04 lb) Product Dimensions 260 mm×225 mm×47.6 mm (W × L × H) Box Dimensions 87 mm×331 mm×312 mm (W × L × H) Operating Temperature -10°C to 45°C (+34°F to +113°F) Storage Temperature 0°C to 40°C (+32°F to +104°F) Operating Humidity 10%~93% Storage Humidity 30%~85% Operating Altitude 3000 m (9843 ft) Installation Desktop mounting Certification CE/FCC
